![LED DRIVER]() |
>> 產品介紹

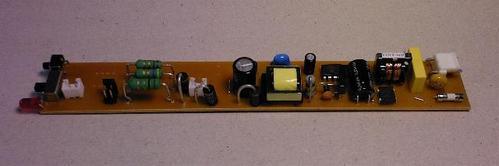

HL-0807-051
使用於緊急出口燈上的LED DRIVER & CHARGER
Specifications:
AC input voltage: 90-264VAC
AC input frequency: 47/63Hz
AC input current: 1A Max@110Vac
Maximum inrush current:
10A Max.@110Vac input (25℃ cold start)
20A Max.@220Vac input (25℃ cold start)
Line regulation:±1%
Load regulation:±3%
Efficiency: 70% minimum at full load
Hold up time:16msec
Operation temperature: 0℃ to +30℃(full load)
Storage temperature: -20℃ to +85℃
Size: 190(L)x27(W)x23(H)mm |
|
|
|
|
|
|
|
|
